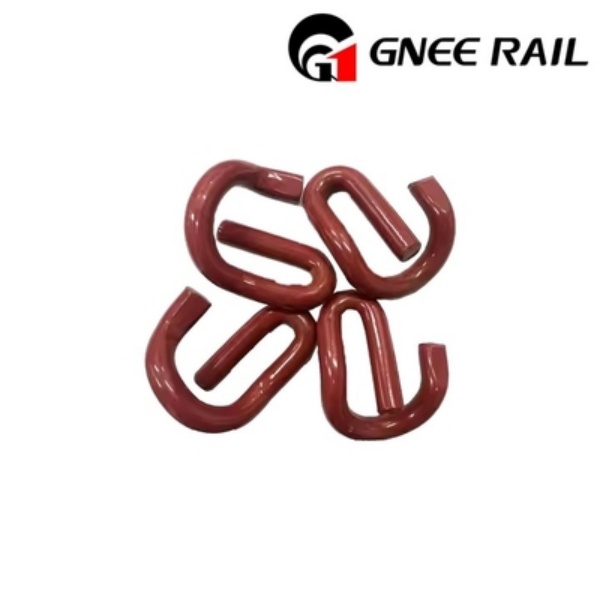

Elastic Deenik Rail Clamps
The Deenik rail clip, or Deenic Elastic Rail Tension Clamp, is a "D"-shaped clip used to fasten rails securely to sleepers. GNEE Rail is your trusted partner for elastic rail clips, including Fast Clips, E-Clips, E2009, E1809, E2005, E2055, E2003, SKL12, SKL14, Nabla Clips, and Fist Clips. We offer products for wooden, steel, and concrete sleepers, with full customization available-contact us for details!
Deenic Rail Fixing Clips specification
Model: Deenik Clip
Type: Rail Clip
Diameter: Ø13
Weight: 0.49-0.68kg/pc
Material: 60Si2MnA, 55Si7, 38Si7
Surface: Plain, Oxide Black, Color Painting, etc.
Deenik Elastic clip fastening system components
| Item | Components | Quantity/Set | Material |
| 1 | Rail Clip | 4 | 60Si2MnA |
| 2 | Tie Plate | 4 | Q235 / QT450 |
| 3 | Rail Insulator | 4 | PA66+30%GF |
| 4 | Screw Spike & Dog Spike | 4 | Q235&35k&45# |
| 5 | Rail Pad | 2 | Rubber & EVA & HAPE |
Deenik Elastic clip technical parameters
| Series | Model | Spec. | Hardness |
| E rail clip | III type rail clip | ø18 | 44-48HRC |
| E1609 rail clip | ø16 |
| E1809 rail clip | ø20 |
| E1804 rail clip | ø18 |
| E1806 rail clip | ø18 |
| E1813 rail clip | ø18 |
| E2001 rail clip | ø20 |
| E2007 rail clip | ø20 |
| E2009 rail clip | ø20 |
| E2039 rail clip | ø20 |
| E2055 rail clip | ø20 |
| E2056 rail clip | ø20 |
| E2063 Rail Clip | ø20 |
| E2091 Rail Clip | ø20 |
| PR rail clip | PR85 Rail Clip | ø13 |
| PR309A Rail Clip | ø19 |
| PR401 Rail Clip | ø20 |
| PR415 Rail Clip | ø20 |
| PR601A Rail Clip | ø22 |
| Vossloh clip& Forged rail clip | SKL 1 Rail Clip | ø13 | 42-47HRC |
| SKL 3 Rail Clip | ø13 |
| SKL 12 Rail Clip | ø13 |
| SKL 14 Rail Clip | ø14 |
| Special rail clip | Special rail clip | ø13 | |
| Russia rail clip | Russia rail clip | ø18 | |
| Deenik clip | Deenik clip | ø25 | |
| Anti-vandal clip | Anti-vandal clip | ø18 | |
| Fast clip | Fast clip | ø15 | |
| GL1419 | GL1419 | ø14 | |
| Nabla Spring blade | Nabla Spring blade | | |
| KPO/rail clamp | KPO/rail clamp | | |
| RAIL CLIP GANTREX | RAIL CLIP GANTREX | | |
| We can also produce customized rail clips according to your drawings or samples. |

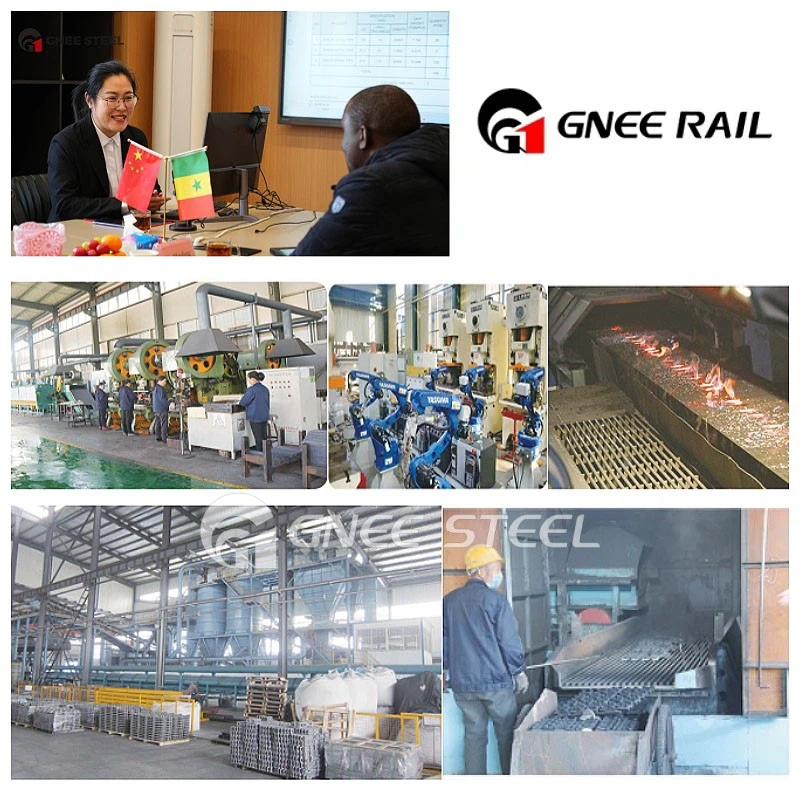

Deenik Elastic clip workshop
